How to Build DIY Solar Battery Storage – Complete Guide for Energy Independence

Imagine riding out a blackout with the lights on, fridge running, and no generator noise, all powered by energy you stored yourself. DIY solar battery storage makes that possible, giving you energy independence, backup power during outages, and savings on peak electricity rates. Whether you're off-grid, want emergency resilience, or simply tired of rising utility bills, building your own system puts control in your hands. In this guide, you'll learn how to select compatible components, design and install a safe, efficient solar battery storage system, and maintain it for years of reliable performance. Let's immerse.

Understanding Solar Battery Storage Systems and Key Components

What Solar Battery Storage Does

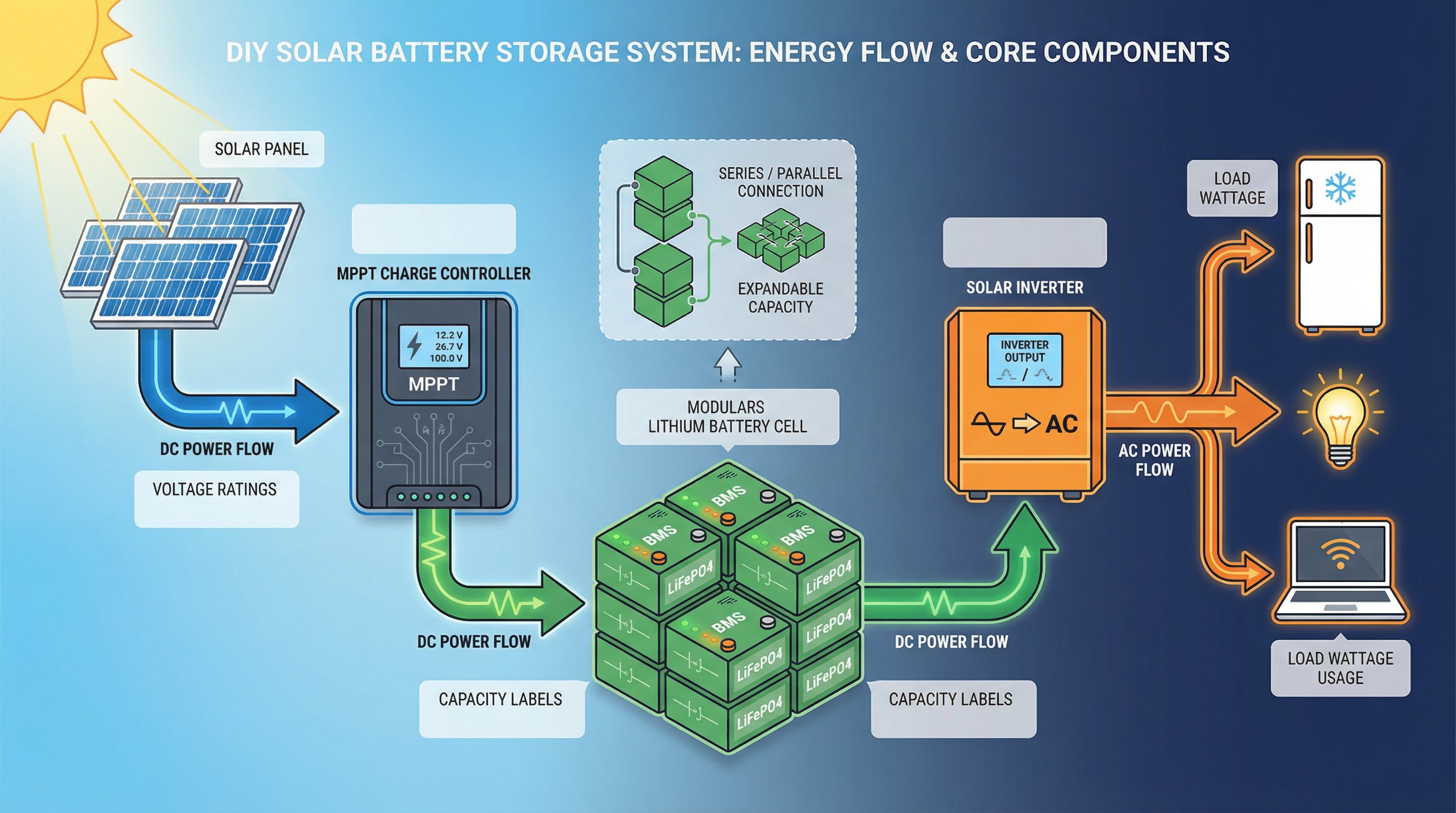

A solar battery storage system captures excess energy from your solar panels during the day and stores it for use at night, during cloudy weather, or when the grid goes down. Instead of sending surplus power back to the utility, you bank it in batteries, giving you backup power, peak-shaving capability, and true energy independence.

For homeowners and off-grid property owners, this means resilience. For solar installers and businesses, it means offering clients complete, reliable solutions.

Core Components You'll Need

Every DIY solar battery storage system shares a handful of essential parts:

• Deep cycle batteries: The heart of your system. Lithium iron phosphate (LiFePO4) batteries are the gold standard, lightweight, long-lasting (3,000–5,000+ cycles), and far safer than lead-acid. Common DIY setups start with 1–2 kWh packs, expandable via series or parallel wiring for more voltage or capacity.
• MPPT charge controller: This device manages power flow from your solar panels to your batteries, maximizing efficiency (often 20–30% better than older PWM controllers). It prevents overcharging and deep discharge, extending battery life.
• Solar inverter: Converts stored DC battery power into AC power for your home appliances. Size it to handle your total load, if you plan to run 1,500 watts simultaneously, choose an inverter rated at least that high (2,000W+ for headroom).
• Cables, connectors, and mounts: Properly gauged wiring prevents voltage drop and overheating. Secure mounts (frames, brackets) hold panels at optimal angles and protect against snow or wind.
• Battery Management System (BMS): Built into quality LiFePO4 packs or added separately, a BMS monitors cell health, balances charge across cells, and cuts power if temperature or voltage strays out of safe range.

Compatibility is Critical

Mismatched voltages are the #1 killer of DIY systems. If your solar array outputs 24V, your charge controller, batteries, and inverter must all work at that voltage. Double-check spec sheets, and when in doubt, consult manufacturer guidelines or experienced integrators.

For example, Humless BESS offers modular LiFePO4 systems designed to integrate seamlessly with solar, wind, or grid sources, pre-matched components save you guesswork and potential failures.

Typical System Configurations

A basic 1–2 kWh DIY setup might include:

• 200–400W solar panel array
• 12V or 24V LiFePO4 battery bank (100–200 Ah)
• 30A MPPT charge controller
• 1,000–2,000W pure sine wave inverter

This handles essential loads like lights, a fridge, laptops, and phone chargers. Scale up capacity and inverter size for whole-home backup or high-draw appliances (well pumps, air conditioning).

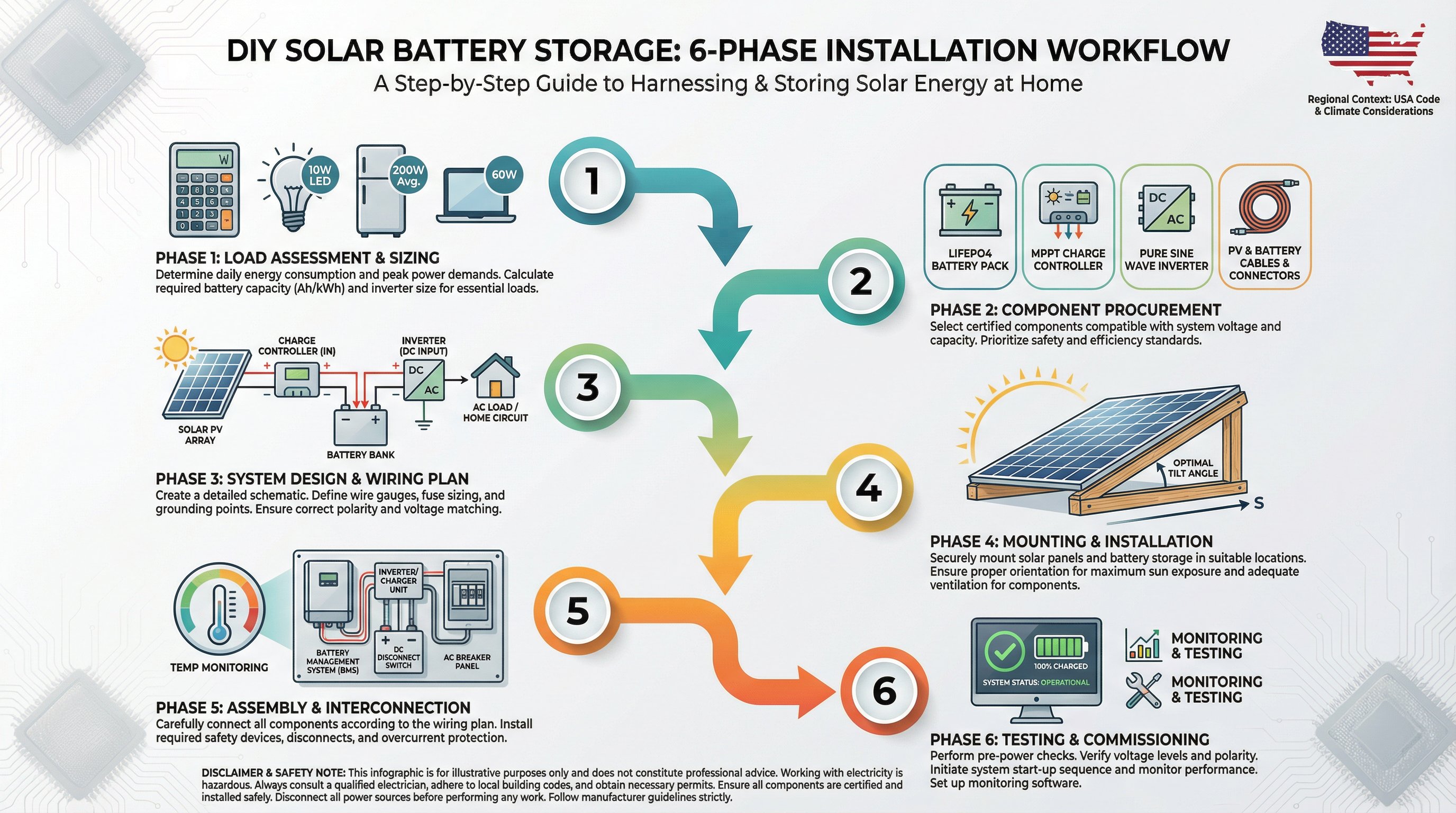

Step-by-Step: Designing and Installing Your DIY Solar Battery Storage System

Step 1: Calculate Your Energy Load

Before buying anything, figure out how much power you actually need. List every device you want to run, note its wattage, and estimate daily usage hours.

Example:

• LED lights (50W × 5 hours) = 250 Wh
• Refrigerator (150W × 8 hours) = 1,200 Wh
• Laptop (60W × 4 hours) = 240 Wh
• Total daily load: ~1,690 Wh ≈ 1.7 kWh

Add 20–30% buffer for inverter inefficiency and cloudy days. So you'd target a 2–2.5 kWh battery bank and enough solar capacity to recharge it daily (typically 300–500W of panels, depending on your location's sun hours).

Step 2: Source and Assemble Components

Once you know your needs, shop for matched components:

• Batteries: Look for UL-certified LiFePO4 packs with integrated BMS. Quality matters, cheap batteries can fail early or pose fire risks.
• Charge controller: Choose MPPT over PWM for efficiency. Match input voltage to your panel array and output to battery voltage.
• Inverter: Pure sine wave models protect sensitive electronics. Size for peak load plus startup surge (motors can draw 2–3× rated power briefly).
• Wiring: Use appropriately gauged copper cable (consult voltage-drop charts). Include inline fuses or breakers.

Pro tip: Modular, pre-integrated systems like those from Humless eliminate mismatched parts and streamline installation, especially if you're new to electrical work.

Step 3: Wire the System Safely

Follow this connection sequence to avoid shorts and damage:

1. Panels to charge controller: Connect solar array positive and negative leads to the controller's PV input terminals. Double-check polarity.
2. Controller to batteries: Wire the controller's battery output to your LiFePO4 bank (again, observe polarity). The BMS will activate once connected.
3. Batteries to inverter: Connect battery terminals to the inverter's DC input. Secure all connections with heat-shrink or electrical tape.
4. Inverter AC output: Wire to a distribution panel, transfer switch, or dedicated outlet for your loads.

Insulate every connection point. Work in a well-ventilated, dry space, and keep a fire extinguisher (rated for electrical fires) nearby.

Step 4: Mount Solar Panels

Position panels where they'll catch maximum sun, typically facing south (in the Northern Hemisphere) at a tilt equal to your latitude.

• DIY frames: Simple 2×4 lumber frames with L-brackets work for ground or roof mounts. Ensure the angle sheds snow and rain.
• Secure mounting: Use stainless-steel hardware to prevent rust. For roof installs, seal penetrations with flashing or sealant to avoid leaks.
• BMS and compression: If you're building a custom LiFePO4 pack, sandwich cells with EVA foam pads and compression plates to prevent swelling and extend life.

Step 5: Install Control Equipment Indoors

Mount your charge controller, inverter, and any optional grid charger on a wall-mounted board (plywood or pegboard) in a temperature-stable location, ideally between 50–80°F. Avoid direct sunlight, moisture, and extreme heat or cold.

Label every wire, fuse, and breaker. Clear labeling makes troubleshooting and future upgrades far easier.

Step 6: Test in a Controlled Environment

Before connecting critical loads, run a few low-stakes tests:

• Verify the charge controller shows incoming solar power and correct battery voltage.
• Switch on the inverter with a single light or fan to confirm AC output.
• Monitor battery charge/discharge cycles for a day or two.

If readings look good and nothing overheats, gradually add more loads.

Safety, Maintenance, and Maximizing Your System's Performance

Safety First: Avoiding Common Hazards

Voltage matching is non-negotiable. Mixing 12V and 24V components will fry your gear, or worse. Always confirm specs before wiring.

Prevent shorts by using insulated terminals, heat-shrink tubing, and cable management. A single loose wire can spark a fire.

Ventilation and temperature: Batteries perform best between 50–80°F. Store them in a ventilated area away from direct sun, freezing temps, or moisture. LiFePO4 cells are safer than lead-acid, but they still need proper conditions.

Fire safety: Keep a Class C fire extinguisher within reach. Never overload your inverter, it can overheat and fail.

Mistakes DIYers Make (and How to Avoid Them)

• Incompatible parts: Always cross-check voltage, current ratings, and connector types.
• Undersized inverters: Inverters rated below your peak load will shut down under strain. Build in 20–30% headroom.
• Skipping the BMS: Without cell monitoring, LiFePO4 packs can become unbalanced and degrade quickly.
• Poor wire gauge: Thin wires cause voltage drop, heat, and potential fire. Use a wire-size calculator.

Routine Maintenance for Longevity

• Monitor system health: Use a battery monitor or app (many modern BMS units offer Bluetooth) to track voltage, current, and state of charge.
• Clean panels regularly: Dust, leaves, and bird droppings reduce output. A quick rinse or wipe every few months keeps efficiency high.
• Inspect connections: Check for corrosion, loose terminals, or frayed wires quarterly.
• Clear snow: In winter, gently sweep snow off panels to restore production.
• Replace worn parts: Fuses, connectors, and cables don't last forever. Swap them out at the first sign of damage.

Maximizing Efficiency and Runtime

• Upgrade to MPPT: If you started with a PWM controller, switching to MPPT can boost harvest by 20–30%.
• Expand capacity smartly: Add batteries in parallel (same voltage, more amp-hours) for longer runtime, or in series (higher voltage) for larger inverter compatibility.
• Load management: Run high-draw appliances during peak sun hours to minimize battery drain.
• Invest in quality: Reliable, UL-certified components like Humless BESS reduce failures and offer 24/7 support when you need it.

When to Call a Pro

DIY is empowering, but some tasks, like grid-tied interconnections, complex wiring, or rooftop work, benefit from professional help. If you're unsure about electrical codes, permits, or safety, consult a licensed solar installer or electrician. Many offer design reviews or partial installs that let you handle simpler tasks yourself.

Frequently Asked Questions About DIY Solar Battery Storage

What are the essential components needed for a DIY solar battery storage system?

A DIY solar battery storage system requires deep cycle LiFePO4 batteries (the core), an MPPT charge controller (maximizes efficiency 20–30%), a pure sine wave solar inverter (rated for your peak load), properly gauged cables, mounting hardware, and a Battery Management System (BMS) to monitor cell health and prevent overcharging.

How much solar battery storage capacity do I need for my home?

Calculate daily watt-hour usage by listing each appliance's wattage and daily run hours. For example, lights (250 Wh) + refrigerator (1,200 Wh) + laptop (240 Wh) = 1.7 kWh. Add 20–30% buffer for inverter inefficiency and cloudy days, targeting a 2–2.5 kWh battery bank as a typical starting point.

Why is voltage compatibility critical in DIY solar battery storage systems?

Mismatched voltages between solar panels, charge controller, batteries, and inverter will cause equipment failure or damage. All components must work at the same voltage (commonly 12V or 24V). Always verify manufacturer spec sheets to prevent shorts, overheating, and potential safety hazards.

What's the difference between MPPT and PWM charge controllers for solar storage?

MPPT (Maximum Power Point Tracking) controllers are far more efficient than PWM controllers, harvesting 20–30% more energy from your solar panels. MPPT also prevents overcharging and extends battery life, making it the preferred choice for DIY solar battery storage systems despite higher upfront cost.

How do I maintain my DIY solar battery storage system for long-term performance?

Monitor system health using a battery monitor or app, clean solar panels every few months to remove dust and debris, inspect connections quarterly for corrosion or loose terminals, clear snow off panels in winter, and replace worn fuses, cables, or connectors promptly to ensure reliable solar battery storage operation.

Can I expand my DIY solar battery storage capacity after installation?

Yes. Add batteries in parallel to increase amp-hours (longer runtime at same voltage) or in series to raise voltage. Scale up your solar panel array and inverter size accordingly. Modular LiFePO4 systems are designed for expansion, letting you grow your solar battery storage as needs evolve.
